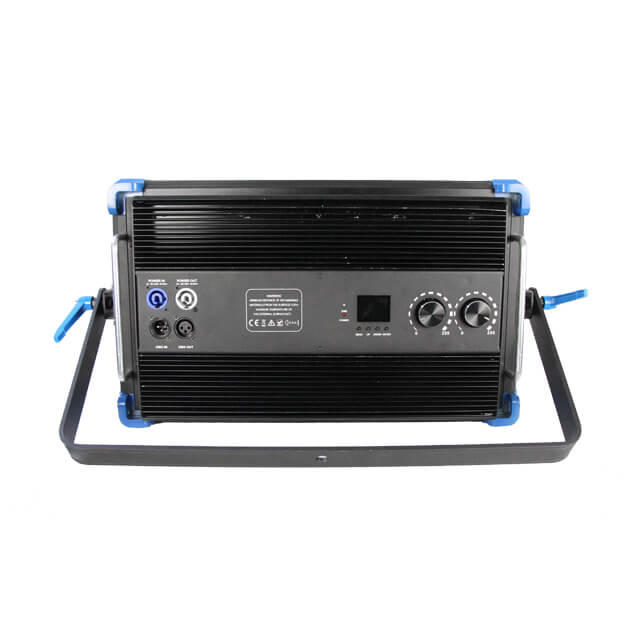

Colorful LED Soft Video Panel Light

-Model: WK-CP1260G
-Light output: 300W
-Color: red, green, blue, pure white, warm white linear color
-Beam angle: 120°
-CRI: Ra95+
  • WK-CP1260G

  • Wekafoto

  • Movies,

·This color panel light has equipped   with a high-brightness LED chip, adopts an advanced heat dissipation system   design, natural heat dissipation and ultra-quiet, so that the product can   meet the strict requirements during radio and television shooting. It is very   simple to operate, user-friendly design, dimming without flicker, smooth   linear dimmer, stable performance, no need to manually set the master and   slave, and automatically receive host data. This lamp is suitable for   photography, photography, TV stations and other occasions with very strict   lighting requirements.


·The lighting function of the light   is controlled by DMX-512, which is very convenient;

·0-100% linear adjustment, smooth   dimming without flicker;

·The lamp body adopts outer frame   design, beautiful appearance, convenient installation, safe and reliable.

Technical Specifications

Light   Sources

·Light sources: 420pcs 0.2W 5050SMD 3 in 1 lamp beads   + 420pcs 0.2W cold white lamp beads + 420pcs 0.2W warm white lamp beads

·Color: red, green, blue, pure white, warm white   linear color

Service life: 50,000h

Light output

·Color temperature: 2700K~10000K

·Color rendering index: ≥95

·Light angle: 135°

Controls and procedures

·Number of DMX channels: 11channels

·Control mode: DMX512

Electrical specifications

·Input voltage: AC100-240V, 50HZ-60HZ

·Power consumption: 200W

Structure specification

·Lamp body size: 584*352*111mm

·Net weight: 8.8kg

·Shell material: aluminum alloy

·Shape color: black

Use environment

·Protection level: IP20

·Environmental temperature: -25-40℃

·Cooling system: Natural cooling

List of standard accessories

·1 DMX signal line

·1 power cord

·1 set of light hook suspension bridge

Optional accessories list

·Safety rope: choose the model you need, extra charge   is required

·Light hook: choose the model you need, extra charge   is required

·Flight case: select the number you need to install,   additional charges are required


·Carton: 665*445*185mm (1pc/carton)

·N.W/G.W: 8.5kg/10kg

Sales repair spare parts list

·Switching power supply: Color Panel 1260G-P

·LED light board: Color Panel 1260G-L

·Motherboard: Color Panel 1260G-M

·Drive board: Color Panel 1260G-D
