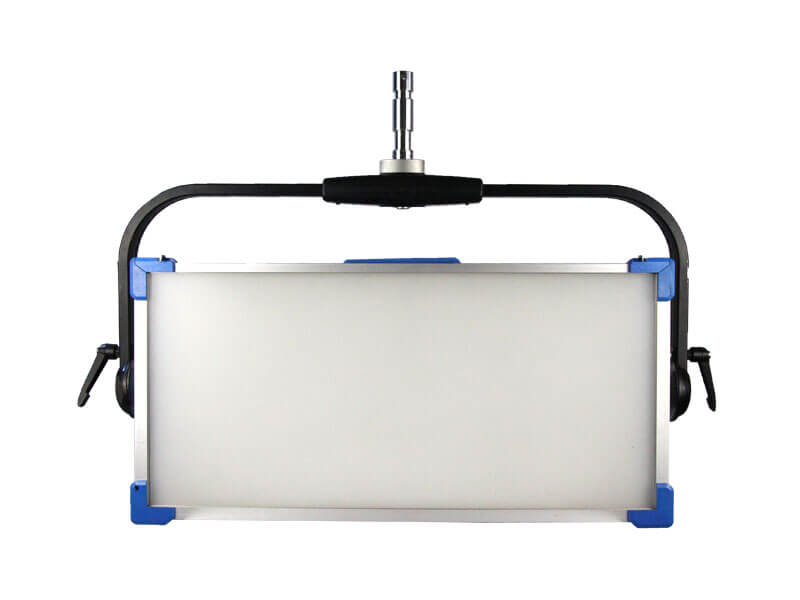

Colorful LED DMX Panel Light

-Model: WK-CP280
-Light output: 280W
-Color: colorful
-Beam angle: 120°
-CRI: 95+
  • WK-CP280

  • Wekafoto

  • Movies,

·This is a 280W colorful LED video panel light for broadcasting. This light can be powered by AC or DC. And it's can controlled by manual, DMX or app. This light is full color. It's can be used for broadcasting, video or film taking, live or other professional places.

Technical Specifications

·Type of Lamp head: LED Soft Light

·Optical System: Swappable Soft Diffusion Panels

·Light Aperture: 645 x 300 mm / 25.4 x 11.8"

·Beam Angle: 105° Half Peak Angle

·Lamp Type: RGBW LED Light Engine

·White Light: 2,800 K to 10,000 K continuously correlated color temperature

·Colored Light: Full RGB+W color gamut with Hue and Saturation control

·T Green-Magenta Adjustment: Continuously adjustable (Full Minus- to Full Plus green)

·Color Rendition: CRI Average > 95 ,TLCI Average > 90

·Color Temperature Tolerance: +/- 100 K (nominal) +/- 1/8 Green-Magente (nominal)

·Dimming: 0 to 100 % continuous

·Light Output in Battery Mode: 50% of total output


·Versions: Manual, Pole Operated

·Handling: Aluminum Yoke High-Strength Tilt Lock Pole Operation

·Mounting: Spigot 28 mm Junior Pin

·Housing Colors: blue/silver, black

·Tilt Angle: +/- 90°

·Weight - Manual: approx. 13 kg / 27.8 lbs

·Weight - Pole operated: approx. 14 kg / 30.4 lbs

Control options

·Control: On-Board Controller, 5-Pin DMX In and Through EtherCon LAN network connectivity, USB-A, Art-Net, sACN

·Remote Device Management (RDM) :DMX Setup, Hour Counter, Standard & Manufacturer RDM commands

·Software Interface - Ethernet :DMX Setup, Fixture Status, Firmware Upgrade through PC or MAC

·Software Interface - USB-A : Firmware Upgrade via Flash Drive

·Wireless Interface: via Sky Link Receiver


·Light Modes CCT, HSI, Gel Mode, Source Matching, RGBW, x,y Coordinates

·Special Modes Low End, Stage, Tungsten, High Speed Mode

·Effects Club Lights, Cop Car, Explosion, Fire, Fluorescent Flicker, Paparazzi, Process, Television, Welding and many more

Electrical (Lamp head)

·Lamp head Voltage Input: 48 V⎓

·Power Consumption: 280 W Maximum

·Lamp head Power Connection: Male 3-Pin XLR - 15 A

·Battery Connector: Male 4-Pin XLR - 10 A

·Battery DC Voltage Output: 23 to 36 V⎓

·Protection Class / IP Rating: III / IP20

·Ambient Temperature Operation: -20 to +45°C/ -4 to +113°F

·Estimated LED Lifetime (L70) : 50,000 hours

·Estimated Color Shift over Lifetime (CCT) : +/- 5%


·Flight case package size: 960*350*760mm(1pc/case) [f:20-12-08]

·N.W/G.W: 13kg/29kg

lux chart of S60

S60 spare parts (1)

S60 Grid

S60 spare parts (2)

S60 Lampshade
